MA45 Hollow Rotary Magnetic Absolute Encoder

Series：

Format：See the following profile

Specifications　　

Encoder model:	MA45 series
name:	MA45 Hollow Rotary Magnetic Absolute Encoder
Main specifications:	Dimension: 45 mm； Number of detent: Continuous rotation; Output resolution: Single turn 17B, multi-turn 16B.; Working temperature:-10℃～105℃; Input voltage: 5V; Communication interface: RS485 ; Communication protocol: Tamagawa; Absolute positioning accuracy: ±0.1°;(After Calibration ) Temperature Drift Coefficient: ± 0.1°/ ℃ Rotation life: 1,000,000 cycles Min; Electrical life: 1000 hours Min;
Features:	High precision, high safety performance, rotary servo industrial encoder
Application areas:	Mainly suitable for control and detection of displacement, speed, position, and other aspects in the field of rotational servo industrial control

MA45 Product specification

ONE、MECHANICAL CHARACTERISTIC

1. Friction torque: ≤1 mN•m (@ Specification Ta=20℃ The temperature is 20℃）
2. Permissble operation rotational speed: ≤6000rpm
3. Moment of inertia: ≤0.68 kg•mm²
4. Allowable shaft load: Radial: 140N Max, Axial: 70N Max

TWO、ELECTRICAL CHARACTERISTIC

1. Insulation resistance: DC100V, more than 50MΩ
2. Dielectric voltage: 1 Minute at AC 500V
3. Resolution: Single turn single: Max. support 131072（17 bit); Multi-turn signal: 65536（16 bit)
4. ESD test: Air discharge: ±4KV, Contact discharge :±2KV

THREE、ENDURANCE CHARACTERISTIC

1. Mechanical life: 1,000,000 cycles Min
2. Electrical life:1000 hours Min

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".

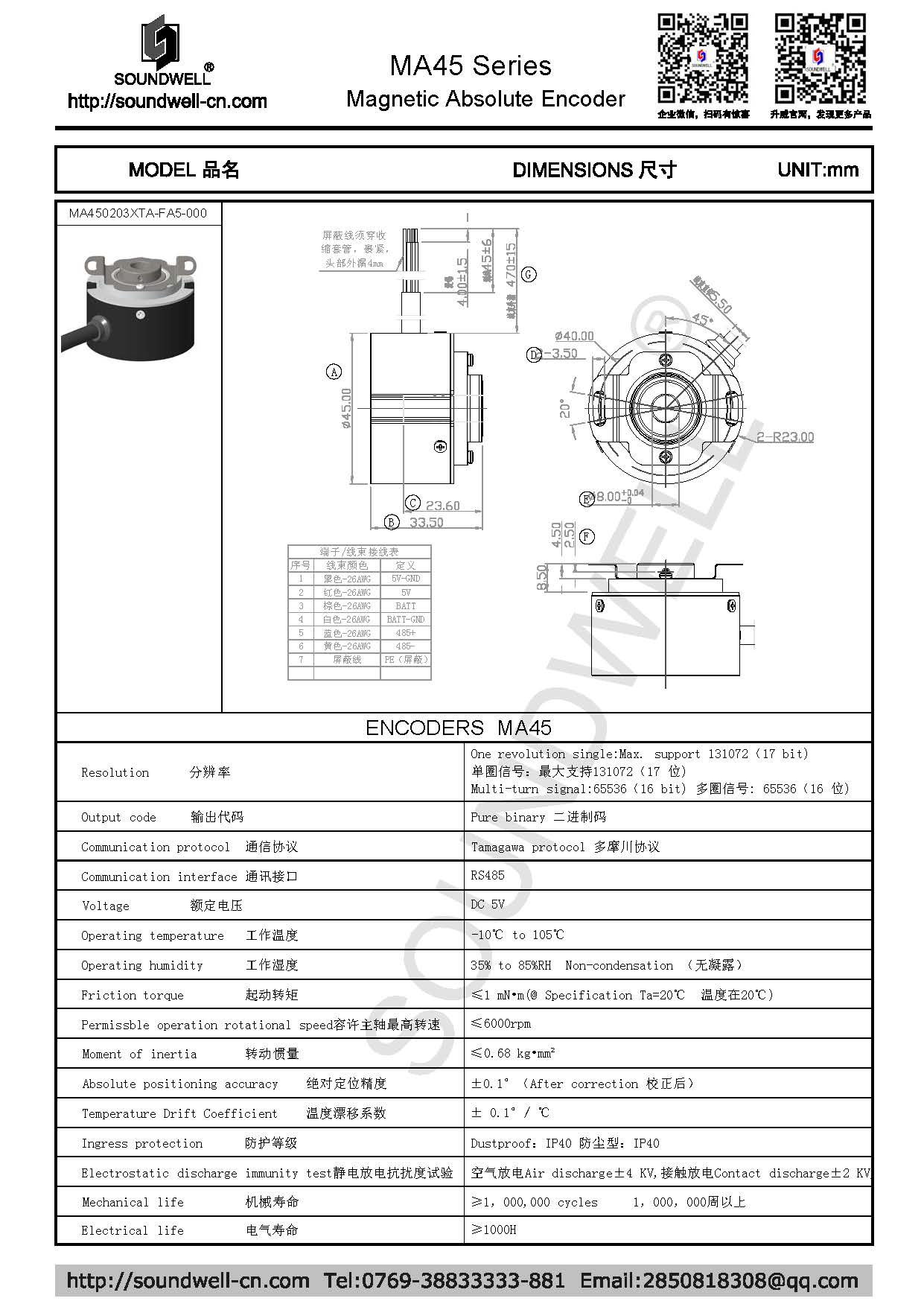

/uploads/images/MA45%20datasheet.jpg
